FSA: Divisible by Three

PythonHardclosuresfunctional_programminghigher_order_functions

Instructions

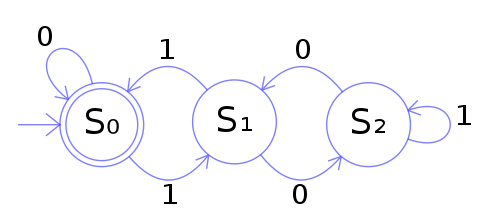

Create a function which checks if a binary number is divisible by three by implementing the following [finite-state automaton] (https://en.wikipedia.org/wiki/Finite-state_machine):

The function should implement the following commands:

  • 0, 1 ➞ The next digit in the number.
  • "state" ➞ The automaton's current state: "S0", "S1", or "S2".
  • "stop" ➞ Whether the automaton accepts or rejects the number that's been given. The function should either return "accept" or "reject".

Examples

divisible(1)(1)(0)(1)(0)("stop") ➞ "reject"
# 26 is not divisible by 3, and 26 == 0b11010

divisible("state") ➞ "S0"
# The automaton should start at S0

divisible(1)(0)(1)("state") ➞ "S2"

Notes

  • The function should be capable of handling arbitrarily long binary numbers.
  • The function will only be fed valid inputs.
  • The function should terminate after a "state" or "stop" command.
  • In this case, acceptance occurs if the state at termination is "S0", whereas rejection occurs if the state at termination is "S1" or "S2".
  • The int function is disabled to prevent conversion from binary to decimal.
